Wedge Wire / Heel Guard Style Heavy Duty Driveway Drain Grate Cover (Insert Only) - 111mm - Fits Reln Drain Channels

DrainTEK

Product Code: CSG-WW-120-3010-H

$34.95

DrainTEK Heavy Duty 316L Stainless Steel Wedge Wire Outdoor Drain Grate Insert for Reln Channels in Australian Landscapes

Description
Specification
Warranty
Reviews

Linear Wedge Wire Driveway Grate Insert Only - Heavy Duty

DrainTEK's custom made wedge wire outdoor grate INSERT ONLY are manufactured to order at any length. The quality is superior to most driveway grate products on the market and you will not find a better-priced custom length outdoor grate insert at this quality. It features a B125 (12.5 tonnes) load-bearing classification that can withstand the weight of family cars, vans, and 4x4s. The fine gaps, hidden welds and brushed finish make it popular for high end drainage installations in patios, balconies, landscaping and pool surrounds. The architectural design and durable brushed 316 stainless steel finish will provide a timeless look to any outdoor linear drainage.

Easily Upgrade your Existing Drain Channel

Get the upgrade that you wanted for your drain channel without the big cost. The DrainTEK wedge wire heavy duty driveway grate INSERT ONLY perfectly fits 111mm wide outdoor grate trays of any material. Replacing your existing drain channel inserts with the DrainTEK wedge wire insert will not only make your drainage channel look more pleasing; it will also increase its durability over time.

Wedge wire inserts will be a maximum of 3000mm in length and your wedge wire insert will be cut into equal lengths so that you have a beautifully symmetrical grate insert. If you require length(s) greater than 3000mm, please note this in the special comments section and we will confirm the order specifications with you.

Highest Quality Linear Drains for Outdoor Landscaping

DURABLE - Full 316 low-carbon stainless steel for durability and corrosion resistance - no plastic components
CUSTOM-MADE - Manufactured in Australia to any length according to your specifications
EASY UPGRADE - Wedge wire grate INSERT ONLY perfectly fits 111mm wide driveway grate trays of any material
HIGH LOAD BEARING - Fully welded high load-bearing wedge wire insert (5mm wedge wires) with B125 class load that can withstand weight of up to 12.5 tonnes
LIFETIME WARRANTY - Against manufacturing defects for peace of mind and quality assurance

Highest Specifications

Composition: Full 316L (low carbon) marine grade stainless steel
Weight Class: B125 (max. weight load of 12.5 tonnes)
Grate Insert: Fully welded. Heavy duty 3mm x 20mm side walls and 5mm wedge wires.
Support Bars: 12mm thick support bars positioned every 30mm for superior strength and heavy duty load support
Grate Design: Wedgewire design. Also known as "Heel guard" design as it is suitable for high heels
Joiner Plate and End Cap: Full 316L (low carbon) stainless steel
Fixing bolts: Full 316L (low carbon) stainless steel
No plastic components

Dimensions

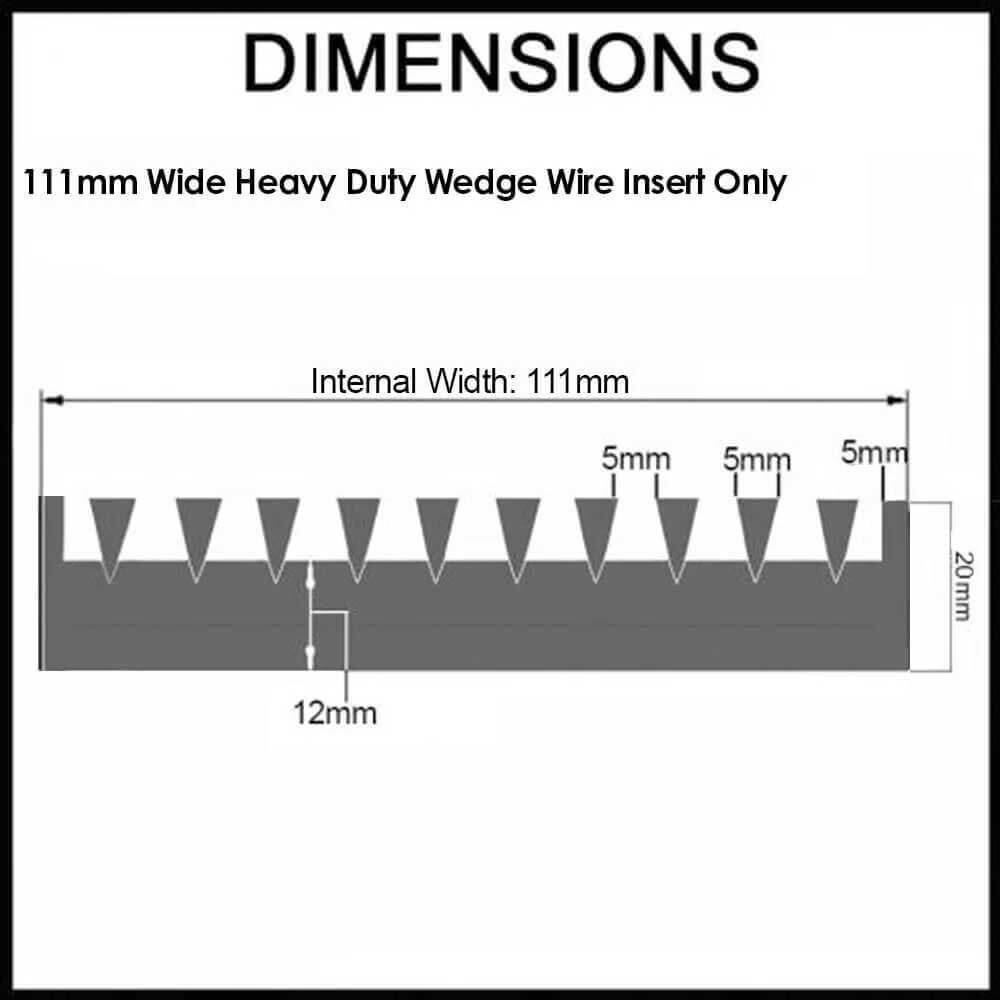

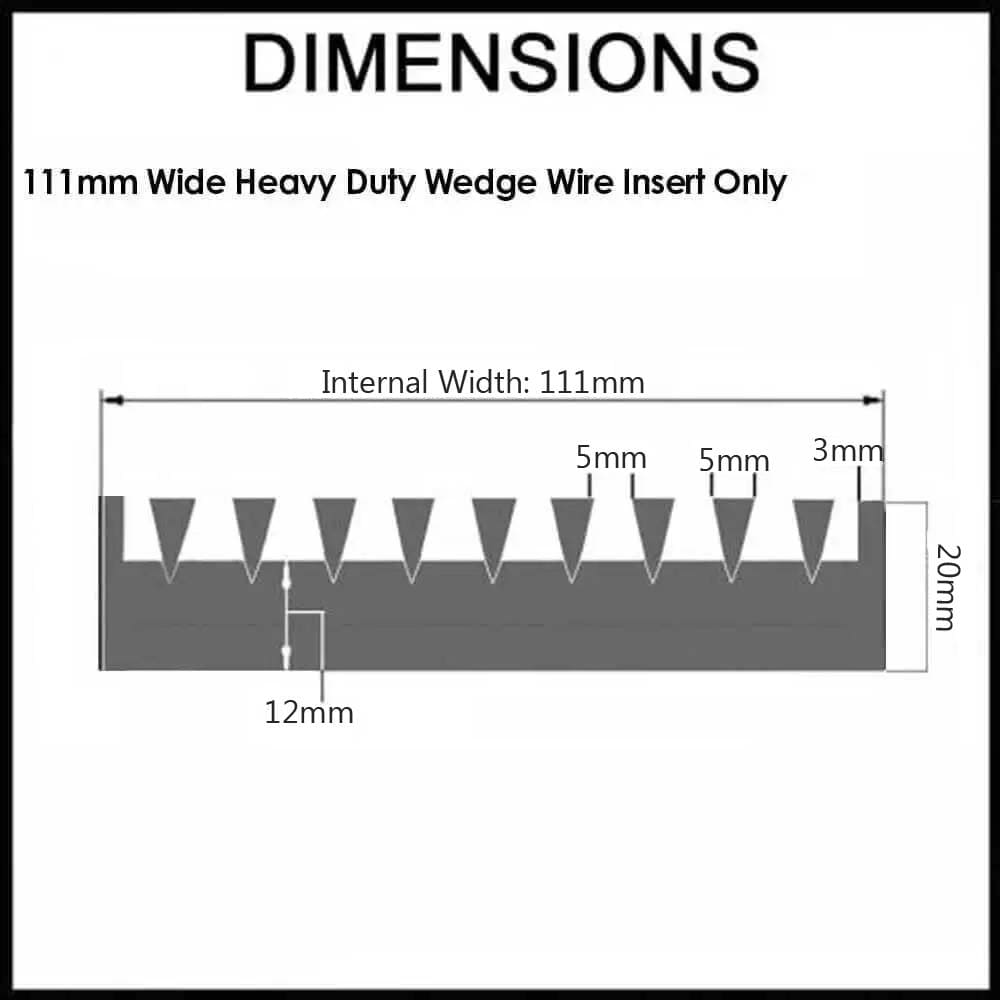

dimension diagram for Draintek Wedge Wire Heavy Duty Driveway Drain

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.
