Heavy Duty Wedge Wire / Heel Guard Style Drain Grate (Insert Only) - 111mm with 32mm pitch - Fits RELN Channels

DrainTEK

Product Code: CSG-WW-120-3011-H

$34.95

High-Quality Wedge Wire Insert with Smaller Pitches for Outdoor RELN Linear Drains in Australian Backyards

Description
Specification
Warranty
Reviews

Linear Wedge Wire Driveway Grate Insert Only

DrainTEK's custom-made wedge wire outdoor grate INSERT ONLY are manufactured to order at any length. The quality is superior to most driveway grate products on the market and you will not find a better-priced custom-length outdoor grate insert at this quality. This heavy duty insert is made from 316L (low carbon) stainless steel for premium durability, with thick support bars for maximum strength capacity. The wedge wire grate is fully welded high load-bearing suitable for high traffic areas.

This grate insert perfectly fits RELN Storm Mate™ and Rain Mate™ drain channels.

Easily Upgrade your Existing Drain Channel

Get the upgrade that you wanted for your drain channel without the big cost. The DrainTEK wedge wire driveway grate INSERT ONLY perfectly fits 111mm wide outdoor grate trays of any material. Replacing your existing drain channel inserts with the DrainTEK wedge wire insert will not only make your drainage channel look more pleasing, but will also increase its durability over time.

Wedge wire inserts will be a maximum of 3000mm in length and your wedge wire insert will be cut into equal lengths so that you have a beautifully symmetrical grate insert. If you require length(s) greater than 3000mm, please note this in the special comments section and we will confirm the order specifications with you.

Highest Quality Linear Drains for Outdoor Landscaping

DURABLE - Full 316 low-carbon stainless steel for durability and corrosion resistance - no plastic components
CUSTOM-MADE - Manufactured in Australia to any length according to your specifications
EASY UPGRADE - Wedge wire grate INSERT ONLY perfectly fits 111mm wide outdoor grate trays of any material
LIFETIME WARRANTY - Against manufacturing defects for peace of mind and quality assurance

Highest Specifications

Composition: Full 316L (low carbon) marine grade stainless steel
Grate Insert: Fully welded.
Support Bars: 12mm thick support bars positioned every 32mm for strong support
Grate Design: Wedgewire design. Also known as "Heel guard" design as it is suitable for high heels
Joiner Plate and End Cap: Full 316L (low carbon) stainless steel
Fixing bolts: Full 316L (low carbon) stainless steel
No plastic components

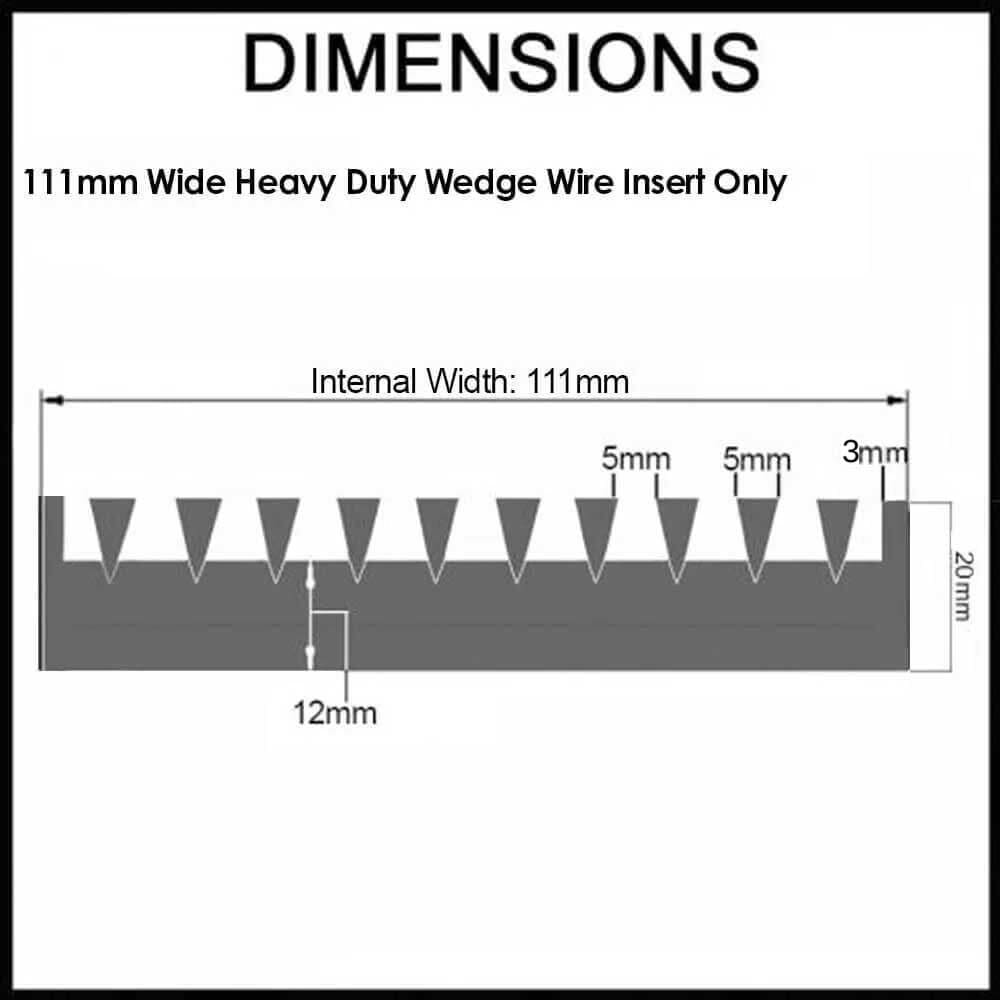

Dimensions

dimension diagram for Draintek Wedge Wire Heavy Duty Driveway Drain

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.
