Outdoor Landscape Pool Drainage Channel - Tray and Grate - Wedge Wire / Heel Guard Style - 100mm - Custom Length and Outlet

DrainTEK

Product Code: CSG-OUT-WW-100-2826

$49.95

DrainTEK 100mm Wide 316L Stainless Steel Outdoor Wedge Wire Drainage Channel for Pool and Landscape Projects, Australia.

Description
Specification
Installation
Warranty
Reviews

Linear Wedge Wire Grates - Modern Simplicity

DrainTEK's custom made wedge wire outdoor linear grates are manufactured to order at any length. You can prescribe exactly where you wish to position the outlet, and select the size of the outlet making it the versatile choice for any new build or renovation. The quality is superior to most outdoor grate products on the market and you will not find a better priced custom made linear drain at this quality level.

This linear outdoor channel drain is all 316L (low carbon) stainless steel - no plastic parts. Simply enter your required length in mm and the required position of the outlet(s) and it will be made to order and supplied in parts as per the installation information.

Full marine grade 316L (low carbon) stainless steel for premium corrosion resistance (suits coastal regions and salt pools)
Sleek brushed stainless steel wedge wire grates provide a modern architectural look
Heavy duty to support heavy traffic
Perfect architectural installation for premium landscape drainage or pool drainage

Heavy Duty Wedge Wide Grate Top

Fully welded high load bearing wedge wire insert - 3mm wedge wires and 3.5 mm gaps for a uniform look
3mm x 21.5mm side walls for superior strength
Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order

Drainage Tray

1.2mm thick stainless steel for heavy duty durability
50mm deep stepped tray for efficient water drainage
Simple modular components and assembly allows for DIY installation
Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone

Premium Specifications

Composition: Full 316L (low carbon) marine grade stainless steel
Tray: 1.2mm thick steel. 100 mm wide. 50 mm deep
Grate insert: Fully welded. Heavy duty 3mm x 21.5mm side walls and 3mm wedge wires with 3.5mm gaps.
Grate design: Wedgewire design. Also known as "Heel Guard" design as it is suitable for high heels
Joiner plate and end cap: Full 316L (low carbon) stainless steel
Fixing bolts: Full 316L (low carbon) stainless steel
Optional outlet(s): 40mm or 50mm diameter outlet at any position (min of 100mm from tray end)
Warranty: Lifetime warranty against manufacturing defects
Manufactured in Australia

Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal.

Dimensions

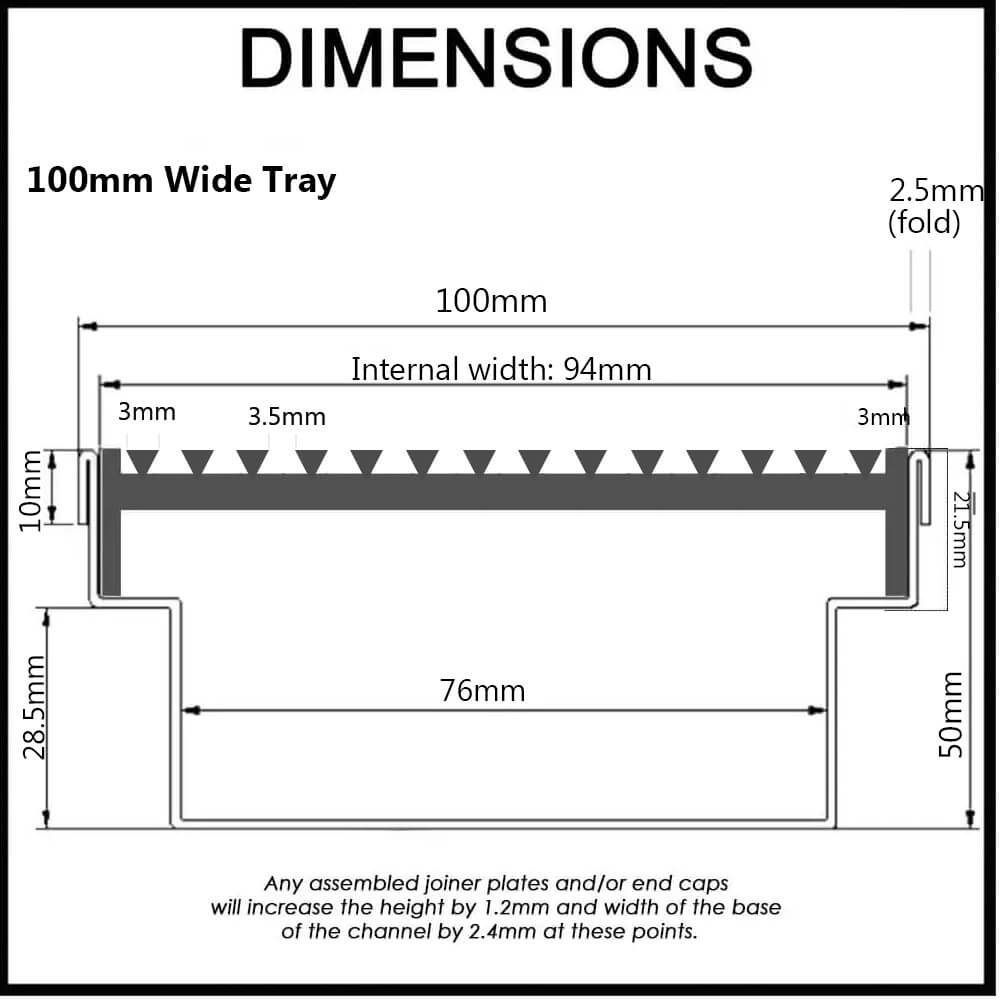

Outdoor Landscape Pool Drainage Channel - Tray and Grate - Wedge Wire / Heel Guard Style - 100mm - Dimensions

Click on the icon below to download the PDF manual for this product

Typical Installation Steps

Construct shower surround in accordance with structural requirements leaving a penetration for drainage.
Add a suitable drainage flange and fasten/bond in place and cap during the building phase. DrainTEK recommends using a suitable puddle flange with an internal diameter large enough for the shower grate outlet to fit loosely within.
Complete water-proofing in accordance with AS3740 with waterproofing turned down into the plumbed drain.
Note: Do not integrate tray with the water-proofing as steel expands/contracts differently to other materials.
Adjust the height of adjustable puddle flange (if installed) to suit desired shower grate height If your tray outlet is not attached, then adhere with a waterproof adhesive sealant prior to installation and ensure it is secure.
Set tray at required height in mortar so the finished tiles will be just above the top edge of the grate tray.

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.
