Outdoor Landscape Pool Drainage Channel - Tray and Grate - Wedge Wire / Heel Guard Style 3mm Gaps - 85mm Wide

DrainTEK

Product Code: CSG-OUT-WW-085-0912

$44.95

Wedge wire outdoor linear drainage channel in 316 stainless steel, 85mm wide, made in Australia.

Description
Specification
Installation
Warranty
Reviews

This linear outdoor channel drain is all 316L (low carbon) stainless steel - no plastic parts. Simply enter your required length in mm and the required position of the outlet(s) and it will be made to order and supplied in parts as per the installation information.

Full marine grade 316L (low carbon) stainless steel for premium corrosion resistance (suits coastal regions and salt pools)
Sleek brushed stainless steel wedge wire grates provide a modern architectural look
Heavy duty to support heavy traffic
Perfect architectural installation for premium landscape drainage or pool drainage

Heavy Duty Wedge Wide Grate Top

Fully welded high load bearing wedge wire insert - 3mm wedge wires and 3mm gaps for a uniform look
5mm x 20mm side walls for superior strength
Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order

Drainage Tray

1.2mm thick stainless steel for heavy duty durability
47mm deep stepped tray for efficient water drainage
Simple modular components and assembly allows for DIY installation
Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone

Premium Specifications

Composition: Full 316L (low carbon) marine grade stainless steel
Tray: 1.2mm thick steel. 85mm wide. 47 mm deep
Grate insert: Fully welded. Heavy duty 5mm x 20mm side walls and 3mm wedge wires with 3mm gaps.
Grate design: Wedgewire design. Also known as "Heel Guard" design as it is suitable for high heels
Joiner plate and end cap: Full 316L (low carbon) stainless steel
Fixing bolts: Full 316L (low carbon) stainless steel
Optional outlet(s): 50mm diameter to suit 50mm diameter (or greater) drainage plumbing
Warranty: Lifetime warranty against manufacturing defects
Manufactured in Australia

Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal.

Dimensions

Drainage Channel Tray Lengths

The drainage channel will be supplied in modules to fulfil your required length with joiner plates and end caps. The following are the channel module sizes:

3.0 metre (3000mm) length
2.0 metre (2000mm) length
1.0 metre (1000mm) length
0.5 metre (500mm) length
Custom length (to complete your overall ordered length)

So, for example, if you order a total linear length of 4.8 metres we will supply:

1 x modular 2.0 metre (2000mm) trays
1 x custom cut 2.8 metre (2800mm) tray
1 x tray joiner plates and fixings
2 x tray end caps and fixings

*PLEASE NOTE: The top folded lip on the supplied end-caps is 2.5mm wide. So if you are ordering a 1000mm tray , once you add two end-caps the overall exterior length will be 1005mm (1000mm tray + 2 x 2.5mm endcaps). Therefore please allow for any endcaps in your overall ordered length.

Simple Modular Assembly

Simple bolt assembly - The standard channel module lengths have pre-installed bolt holes to affix the supplied end caps or joiner plates (for long lengths).
Bolts supplied - 316 Stainless Steel bolts are supplied for the installer to assemble the channel modules prior to installation
Utilise sealant - drainTEK recommends that a quality outdoor waterproof adhesive silicone is also used with the bolts at channel joins and end-caps to ensure a suitable seal
Affix and seal end-caps - Custom cut lengths of outdoor channels may not have the pre-installed bolt holes at one or both ends. In this case, simply use a quality outdoor waterproof adhesive silicone to affix and seal the end-cap.
Affix and seal outlets - Outlets are also to be affixed to the underside of the channel where holes have been drilled to order. Simply use a quality outdoor waterproof adhesive silicone to affix and seal the outlet.

Drainage Grate Insert - Wedge Wire (Heel Guard)

The drainage grate is supplied in lengths of up to 3.0m (3000mm). If a total length greater than 3.0m is ordered we will supply multiple grates in equal lengths. So, for example, if you order a total linear length of 5.4 metres we will supply 2 x 2.7 metre (2700mm) lengths. These butt against each other for a seamless look.

Optional Corner Piece

If you require a corner piece it can be included in your order in the product options. See the image bank for an example of an order with a corner piece

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.

(No reviews yet) Write a Review

$44.95

UPC:

Adding to cart… The item has been added

<p>This wedge wire outdoor drain is perfect for architectural landscaping and pool drainage. Made from 316L (low carbon) stainless steel for premium durability. The wedge wire grate is fully welded high load bearing suitable for high traffic areas. Made in Australia to your specifications - any length and any outlet position.</p> <p><span style="text-decoration: underline;">The quoted price is made up of:</span></p> <ul> <li>The base manufacturing charge of <strong>$44.95</strong></li> <li>A charge of <strong>$0.27</strong> for each mm of length (Select the width and then enter the length where prompted below)</li> </ul>

<p>This linear outdoor channel drain is all 316L (low carbon) stainless steel - no plastic parts. Simply enter your required length in mm and the required position of the outlet(s) and it will be made to order and supplied in parts as per the installation information. </p> <ul> <li>Full marine grade 316L (low carbon) stainless steel for premium corrosion resistance (suits coastal regions and salt pools)</li> <li>Sleek brushed stainless steel wedge wire grates provide a modern architectural look</li> <li>Heavy duty to support heavy traffic</li> <li>Perfect architectural installation for premium landscape drainage or pool drainage</li> </ul> <h4><br /><strong>Heavy Duty Wedge Wide Grate Top</strong></h4> <ul> <li>Fully welded high load bearing wedge wire insert - 3mm wedge wires and 3mm gaps for a uniform look</li> <li>5mm x 20mm side walls for superior strength</li> <li>Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order</li> </ul> <h4><strong>Drainage Tray</strong></h4> <ul> <li>1.2mm thick stainless steel for heavy duty durability</li> <li>47mm deep stepped tray for efficient water drainage</li> <li>Simple modular components and assembly allows for DIY installation</li> <li>Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone</li> </ul> <p><img src="{{media /content/outdoor/drains/draintek/how-to-order-custom-draintek-outdoor-drain-2020.png"}}" alt="" /> <img src="{{media /content/outdoor/drains/draintek/ordering-draintek-outdoor-drain-with-corner.png"}}" alt="" /></p>

<h4><strong>Premium Specifications</strong></h4> <ul> <li><strong>Composition</strong>: Full 316L (low carbon) marine grade stainless steel</li> <li><strong>Tray</strong>: 1.2mm thick steel. 85mm wide. 47 mm deep</li> <li><strong>Grate insert</strong>: Fully welded. Heavy duty 5mm x 20mm side walls and 3mm wedge wires with 3mm gaps. </li> <li><strong>Grate design</strong>: Wedgewire design. Also known as "Heel Guard" design as it is suitable for high heels</li> <li><strong>Joiner plate and end cap</strong>: Full 316L (low carbon) stainless steel</li> <li><strong>Fixing bolts</strong>: Full 316L (low carbon) stainless steel</li> <li><strong>Optional outlet(s)</strong>: 50mm diameter to suit 50mm diameter (or greater) drainage plumbing</li> <li><strong>Warranty</strong>: Lifetime warranty against manufacturing defects</li> <li><strong>Manufactured in Australia</strong></li> </ul> <p>Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal.</p>

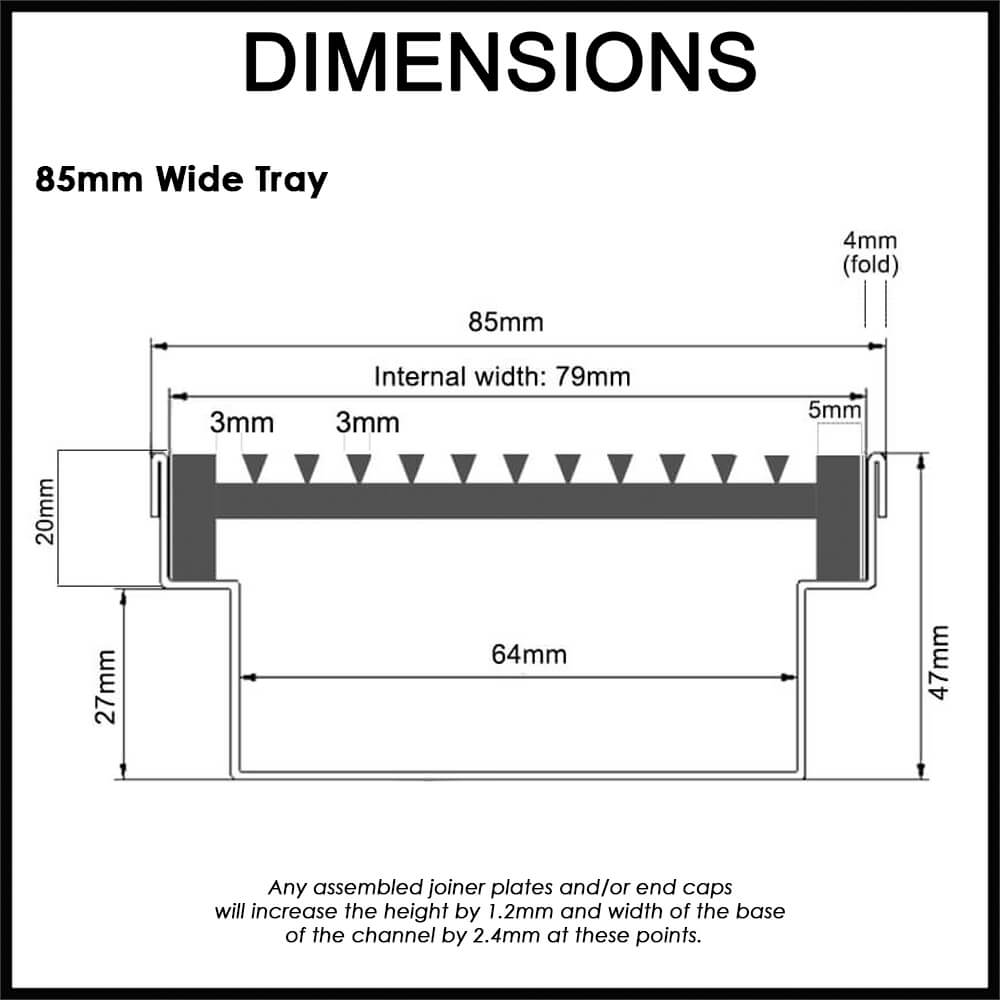

<h4><strong>Dimensions</strong></h4> <img src="/content/outdoor/drains/draintek/draintek-outdoor-drainage-channel-wedge-wire-tray-85mm-dimensions-2021.jpg" alt="architectural linear grate 85mm wide" />

<h4><strong>Drainage Channel Tray Lengths</strong></h4> <p>The drainage channel will be supplied in modules to fulfil your required length with joiner plates and end caps. The following are the channel module sizes:</p> <ul> <li>3.0 metre (3000mm) length</li> <li>2.0 metre (2000mm) length</li> <li>1.0 metre (1000mm) length</li> <li>0.5 metre (500mm) length</li> <li>Custom length (to complete your overall ordered length)</li> </ul> <p><br />So, for example, if you order a total linear length of 4.8 metres we will supply:</p> <ul> <li>1 x modular 2.0 metre (2000mm) trays</li> <li>1 x custom cut 2.8 metre (2800mm) tray</li> <li>1 x tray joiner plates and fixings</li> <li>2 x tray end caps and fixings</li> </ul> <p><br />*PLEASE NOTE: The top folded lip on the supplied end-caps is 2.5mm wide. So if you are ordering a 1000mm tray , once you add two end-caps the overall exterior length will be 1005mm (1000mm tray + 2 x 2.5mm endcaps). Therefore please allow for any endcaps in your overall ordered length.</p> <h4><br /><b>Simple Modular Assembly</b></h4> <ul> <li><b>Simple bolt assembly</b> - The standard channel module lengths have pre-installed bolt holes to affix the supplied end caps or joiner plates (for long lengths). </li> <li><b>Bolts supplied</b> - 316 Stainless Steel bolts are supplied for the installer to assemble the channel modules prior to installation</li> <li><b>Utilise sealant</b> - drainTEK recommends that a quality outdoor waterproof adhesive silicone is also used with the bolts at channel joins and end-caps to ensure a suitable seal</li> <li><b>Affix and seal end-caps</b> - Custom cut lengths of outdoor channels may not have the pre-installed bolt holes at one or both ends. In this case, simply use a quality outdoor waterproof adhesive silicone to affix and seal the end-cap.</li> <li><b>Affix and seal outlets</b> - Outlets are also to be affixed to the underside of the channel where holes have been drilled to order. Simply use a quality outdoor waterproof adhesive silicone to affix and seal the outlet.</li> </ul> <h4><br /><strong>Drainage Grate Insert - Wedge Wire (Heel Guard)</strong></h4> <p>The drainage grate is supplied in lengths of up to 3.0m (3000mm). If a total length greater than 3.0m is ordered we will supply multiple grates in equal lengths. So, for example, if you order a total linear length of 5.4 metres we will supply 2 x 2.7 metre (2700mm) lengths. These butt against each other for a seamless look.</p> <h4><br /><strong>Optional Corner Piece</strong></h4> <p>If you require a corner piece it can be included in your order in the product options. See the image bank for an example of an order with a corner piece</p>
