Shower Grate - Wedge Wire / Heel Guard Style 3mm Gaps - 85mm - Satin Black - Custom made to order

DrainTEK

Product Code: CSG-IND-WW-085-0910-MB

$44.95

Modern Matte Black DrainTEK 85mm Wedge Wire Linear Shower Grate for Contemporary Australian Bathrooms

Description
Specification
Installation
Warranty
Reviews

Linear Wedge Wire Shower Grates in Satin Black finish

DrainTEK manufactures custom wedge wire grates in any length upon request. You can choose the size and location of the outlet, making it the most flexible option for any renovation or new construction. This custom shower drain is of the highest quality, and you won't find one like it at a lower cost. You can also choose this satin black finish which will give your shower area more style.

This firmer wedge wire grate has support bars that are 25mm apart, compressed enough to take more weight. The close gaps between the wires also make this heel guard grate achieve an aesthetic look.

Highest quality linear drains for premium bathrooms

Full 316L (low carbon) marine grade stainless steel
The tray is 1.2mm thick for superior strength
V profile drain tray for efficient water drainage
Fully welded high load bearing wedge wire insert (3mm wedge wires and 3mm gaps)
Wedge wire grate has support bars placed 25mm apart from each other for stronger support
Manufactured in Australia to any length with specified outlet position and size
Finished in satin black to complement a variety of materials and colour palettes

how-to-order-custom-draintek-shower-grates-1908

Highest Specifications

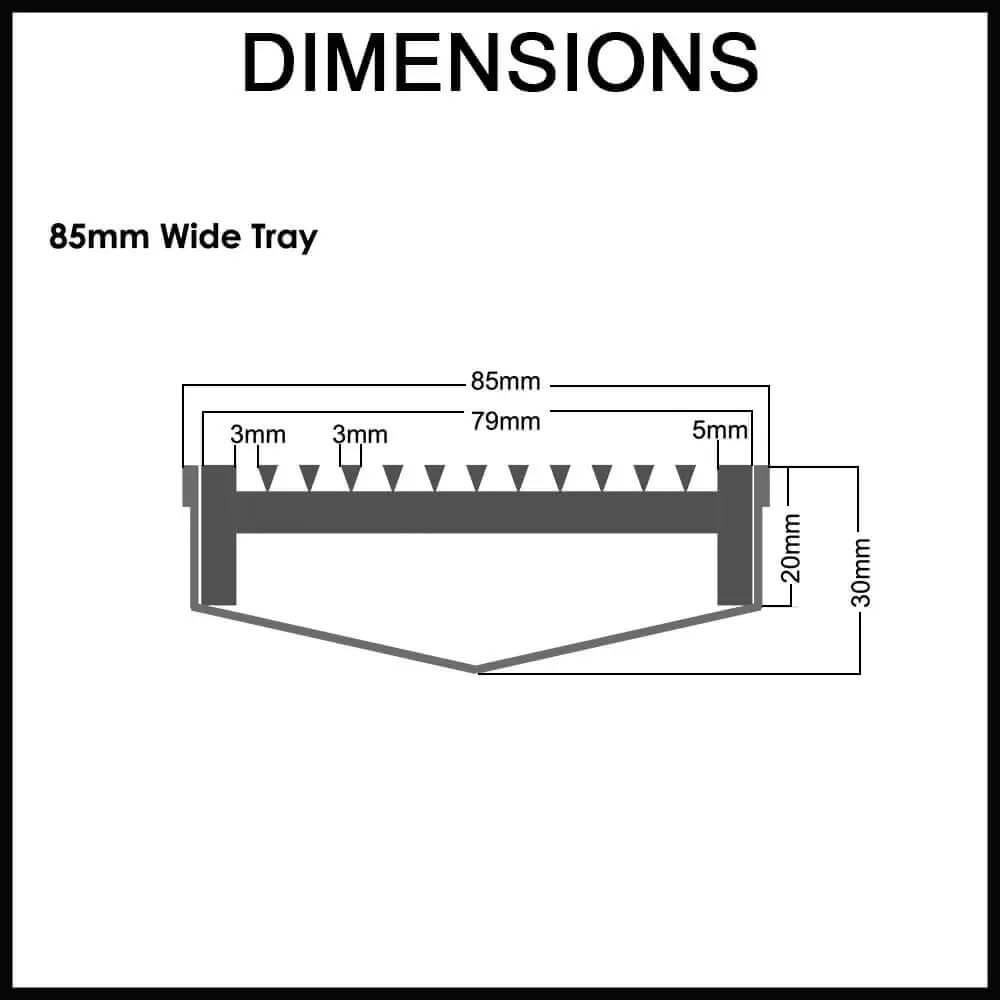

Tray

Full 316L (low carbon) stainless steel tray and outlet (1.2mm thick) in any length
V profile with 30mm depth for efficient drainage
Choice of 40mm or 50mm diameter outlet at any position
Watermark licensed under WMTS-040 - Certificate 23396
Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal
Note: Tray lengths are typically available in up to 1400mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone (eg. Sikaflex)
Manufactured in Australia
Finish: Satin black

Wedge Wire Insert

Wedge wires 3mm wide with 3mm gaps and 5mm x 20mm heavy duty supports
Wedge wire support bars every 25mm for superior strength and heavy duty load support
No plastic components
Note: Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order
Manufactured in Australia
Finish: Satin black

Lifetime Warranty

Lifetime guarantee against manufacturing defects

Click on the icon below to download the PDF manual for this product

Typical Installation Steps

Construct shower surround in accordance with structural requirements leaving a penetration for drainage.
Add a suitable drainage flange and fasten/bond in place and cap during the building phase. DrainTEK recommends using a suitable puddle flange with an internal diameter large enough for the shower grate outlet to fit loosely within.
Complete water-proofing in accordance with AS3740 with waterproofing turned down into the plumbed drain.
Note: Do not integrate tray with the water-proofing as steel expands/contracts differently to other materials.
Adjust the height of adjustable puddle flange (if installed) to suit desired shower grate height If your tray outlet is not attached, then adhere with a waterproof adhesive sealant prior to installation and ensure it is secure.
Set tray at required height in mortar so the finished tiles will be just above the top edge of the grate tray.

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.

(No reviews yet) Write a Review

$44.95
