Custom Shower Grate - Tile Insert - 120 mm - Custom Length and Outlet

DrainTEK

Product Code: CSG-IND-TI-120-1111

$54.95

120mm Wide Stainless Steel Tile Insert Custom Length Shower Grate for Australian Bathrooms

Description
Specification
Installation
Warranty
Reviews

Linear tile insert shower grates - for a minimalist drain

DrainTEK's custom made tile insert shower grates are manufactured to order at any length. You can prescribe exactly where you wish to position the outlet, and select the size of the outlet making it the versatile choice for any new build or renovation. The quality is superior to most shower grate products on the market and you will not find a better priced custom made shower drain at this quality level.

If you require a corner piece (for an L shape configuration), please add your corner piece here.

Highest quality linear drains for premium bathrooms

Full 316L (low carbon) marine grade stainless steel
The tray in all materials are 1.2mm thick for superior strength
27mm deep V profile drain tray for efficient water drainage
13mm deep tile tray to accommodate most floor tiles
Manufactured in Australia to any length with specified outlet position and size

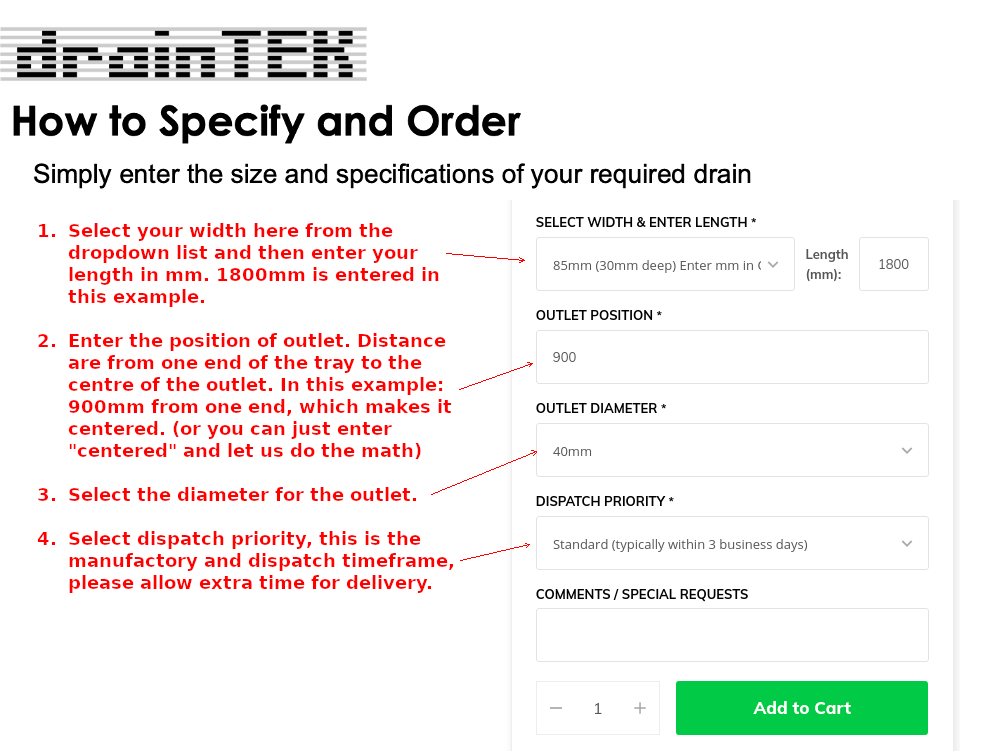

/content/bathroom/drains/how-to-order-custom-draintek-shower-grates-1908.png

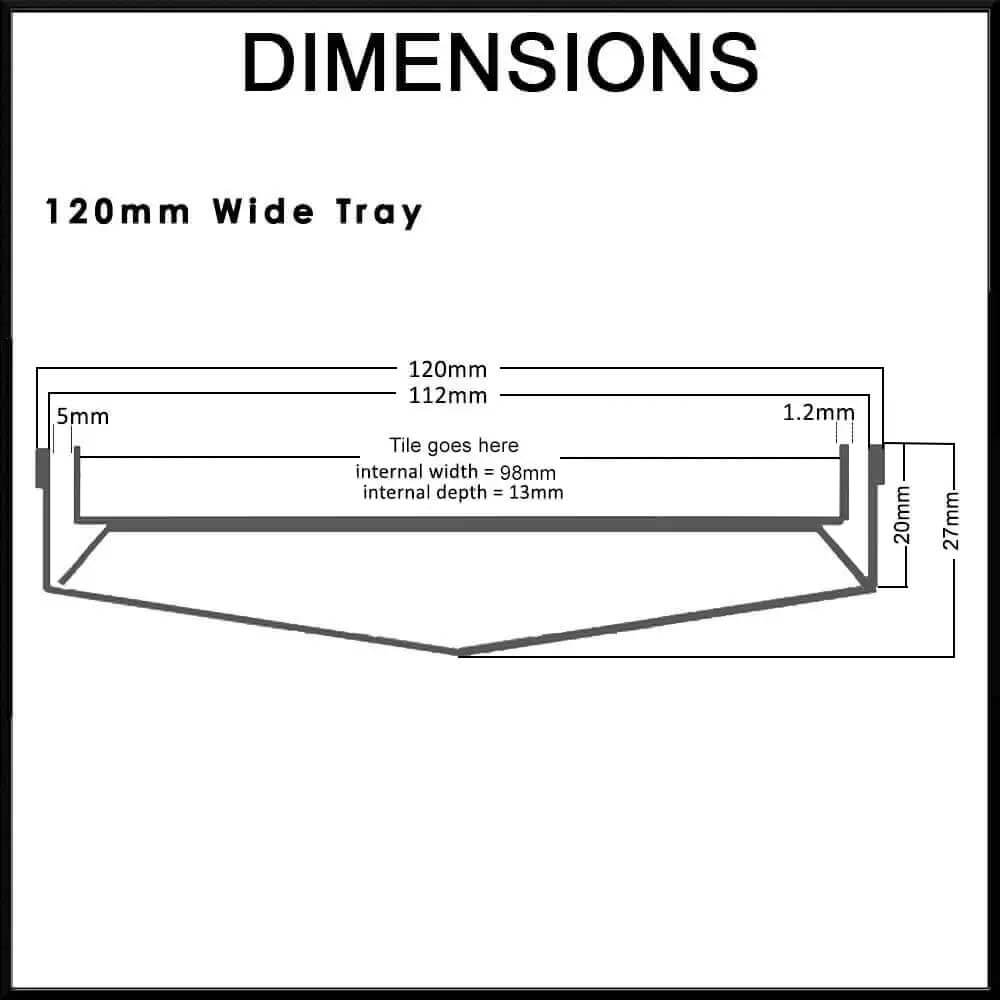

Dimensions

Tile Insert Shower Grate - 316 Stainless Steel - 120mm width Standard Length - dimensions

Highest Specifications

Tray

Full 316L (low carbon) marine grade stainless steel tray and outlet (1.2mm thick) in any length
V profile with 27mm depth for efficient drainage
Choice of 50mm, 76mm, or 90mm diameter outlet at any position
Watermark licensed under WMTS-040 - Certificate 23396
Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal
Note: Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone (eg. Sikaflex)
Manufactured in Australia

Tile Insert Tray

Full 316L (low carbon) marine grade stainless steel 1.2mm thick
Support feet along entire length for heavy duty load support
No plastic components
Note: Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order

Lifetime Warranty

Lifetime guarantee against manufacturing defects

Click on the icon below to download the PDF manual for this product

Typical Installation Steps

Construct shower surround in accordance with structural requirements leaving a penetration for drainage.
Add a suitable drainage flange and fasten/bond in place and cap during the building phase. DrainTEK recommends using a suitable puddle flange with an internal diameter large enough for the shower grate outlet to fit loosely within.
Complete water-proofing in accordance with AS3740 with waterproofing turned down into the plumbed drain.
Note: Do not integrate tray with the water-proofing as steel expands/contracts differently to other materials.
Adjust the height of adjustable puddle flange (if installed) to suit desired shower grate height If your tray outlet is not attached, then adhere with a waterproof adhesive sealant prior to installation and ensure it is secure.
Set tray at required height in mortar so the finished tiles will be just above the top edge of the grate tray.

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.

(No reviews yet) Write a Review

$54.95

UPC:

Adding to cart… The item has been added

<h4><strong>Dimensions</strong></h4> <p><img title="Dimensions of Tile Insert Shower Grate - 316 Stainless Steel - 120mm width Standard Length" src="/content/bathroom/drains/120mm-tile-insert-indoor-shower-grate-custom-lengths-dimensions.jpg" alt="Tile Insert Shower Grate - 316 Stainless Steel - 120mm width Standard Length - dimensions" /></p>

<p>These custom made tile insert shower grates are manufactured by DrainTEK to order at any length. Insert your floor tiles into the removable tray to achieve an almost invisible drain! Prescribe the position the outlet, and select the size of the outlet making it the versatile choice for any new build or renovation. The quality is superior to most shower grate products on the market and you will not find a better-priced custom made shower drain at this quality level.</p> <p>The quoted price is made up of:</p> <ul> <li>The base manufacturing charge of <strong>$54.95</strong></li> <li>A charge of <strong>$0.31</strong> for each mm of length (Select the width and enter the length in box where prompted below)</li> </ul> <p>A narrower 85mm variant is also available <a title=" 85 mm Shower Grate - Tile Insert - Custom Length and Outlet" href="https://www.renovatorstore.com.au/custom-shower-grate-tile-insert.html" target="_blank" rel="noopener">here</a>.</p>

<h4>Linear tile insert shower grates - for a minimalist drain</h4> <p>DrainTEK's custom made tile insert shower grates are manufactured to order at any length. You can prescribe exactly where you wish to position the outlet, and select the size of the outlet making it the versatile choice for any new build or renovation. The quality is superior to most shower grate products on the market and you will not find a better priced custom made shower drain at this quality level. </p> <p>If you require a corner piece (for an L shape configuration), please add your corner piece <a href="/indoor-corner-piece-shower-grate-120mm-wide.html" target="_blank">here</a>.</p>

<h4>Highest quality linear drains for premium bathrooms</h4> <ul> <li>Full 316L (low carbon) marine grade stainless steel</li> <li>The tray in all materials are 1.2mm thick for superior strength</li> <li>27mm deep V profile drain tray for efficient water drainage</li> <li>13mm deep tile tray to accommodate most floor tiles</li> <li>Manufactured in Australia to any length with specified outlet position and size</li> </ul> <p> </p> <p><img src="/content/bathroom/drains/how-to-order-custom-draintek-shower-grates-1908.png" alt="/content/bathroom/drains/how-to-order-custom-draintek-shower-grates-1908.png" /></p>

<h4>Highest Specifications</h4> <p> </p> <p><strong>Tray</strong></p> <ul> <li>Full 316L (low carbon) marine grade stainless steel tray and outlet (1.2mm thick) in any length</li> <li>V profile with 27mm depth for efficient drainage</li> <li>Choice of 50mm, 76mm, or 90mm diameter outlet at any position</li> <li>Watermark licensed under WMTS-040 - Certificate 23396</li> <li>Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal</li> <li>Note: Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone (eg. Sikaflex)</li> <li>Manufactured in Australia</li> </ul> <p> </p> <p><strong>Tile Insert Tray </strong></p> <ul> <li>Full 316L (low carbon) marine grade stainless steel 1.2mm thick</li> <li>Support feet along entire length for heavy duty load support</li> <li>No plastic components</li> <li>Note: Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order</li> </ul> <p> </p> <p><strong>Lifetime Warranty</strong></p> <ul> <li>Lifetime guarantee against manufacturing defects</li> </ul> <p> </p>

<h4><strong>Click on the icon below to download the PDF manual for this product</strong></h4> <p><a href="/content/bathroom/drains/DrainTek-Shower-Grate-Installation-202506UPD.pdf" target="_blank" rel="noopener"><img src="/content/bathroom/drains/specs_sheet-draintek.png" alt="DrainTek-Shower-Grate-Installation" width="100" height="100" /> <br /></a></p> <h4><strong>Typical Installation Steps</strong></h4> <ol> <li>Construct shower surround in accordance with structural requirements leaving a penetration for drainage.</li> <li>Add a suitable drainage flange and fasten/bond in place and cap during the building phase. DrainTEK recommends using a suitable puddle flange with an internal diameter large enough for the shower grate outlet to fit loosely within.</li> <li>Complete water-proofing in accordance with AS3740 with waterproofing turned down into the plumbed drain.<br /><strong>Note:</strong> Do not integrate tray with the water-proofing as steel expands/contracts differently to other materials.</li> <li>Adjust the height of adjustable puddle flange (if installed) to suit desired shower grate height If your tray outlet is not attached, then adhere with a waterproof adhesive sealant prior to installation and ensure it is secure.</li> <li>Set tray at required height in mortar so the finished tiles will be just above the top edge of the grate tray.</li> </ol>
