Outdoor Low Profile Linear Grate - Wedge Wire / Heel Guard Style 3mm Gaps - 85mm - Brass Finish - Custom Length and Outlet

DrainTEK

Product Code: CSG-LOW-WW-085-1648-BR

$44.95

DrainTEK 85mm Brass Finish Linear Shower Grate and Outdoor Drainage Channel - Australia Wide Delivery

Description
Specification
Installation
Warranty
Reviews

Linear Wedge Wire Outdoor Grates in Brass finish

DrainTEK manufactures custom wedge wire grates of any length upon request. You can choose the size and location of the outlet, making it the most flexible option for any renovation or new construction. The quality is superior to most outdoor grate products on the market and you will not find a better priced custom made linear drain at this quality level. You can also choose this brass finish that has a gloss reminiscent of gold and will work with both lavish and simple designs.

If you require a corner piece (for an L shape configuration), please add your corner piece here.

Sleek Wedge Wire Ideal for All Outdoor Spaces

The 85mm low profile linear grate is an architecturally designed water drainage solution for:

Landscaping
Decks and balconies
Patios
Courtyards
Verandas
Paved surrounds
Pool and spa areas
Wet outdoor areas

Highest Quality Linear Drains For Landscaping

Full 316L (low carbon) marine grade stainless steel
The tray is 1.2mm thick for superior strength
V profile drain tray for efficient water drainage
Fully welded high load bearing wedge wire insert (3mm wedge wires and 3mm gaps)
Manufactured in Australia to any length with specified outlet position and size
Its brass finish will go well with a range of materials and color schemes

how-to-order-custom-draintek-shower-grates-1908

Highest Specifications

Tray

Full 316L (low carbon) stainless steel tray and outlet (1.2mm thick) in any length
V profile with 30mm depth for efficient drainage
Choice of 40mm or 50mm diameter outlet at any position
Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal
Note: Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone (eg. Sikaflex)
Manufactured in Australia
Finish: Brass

Wedge Wire Insert

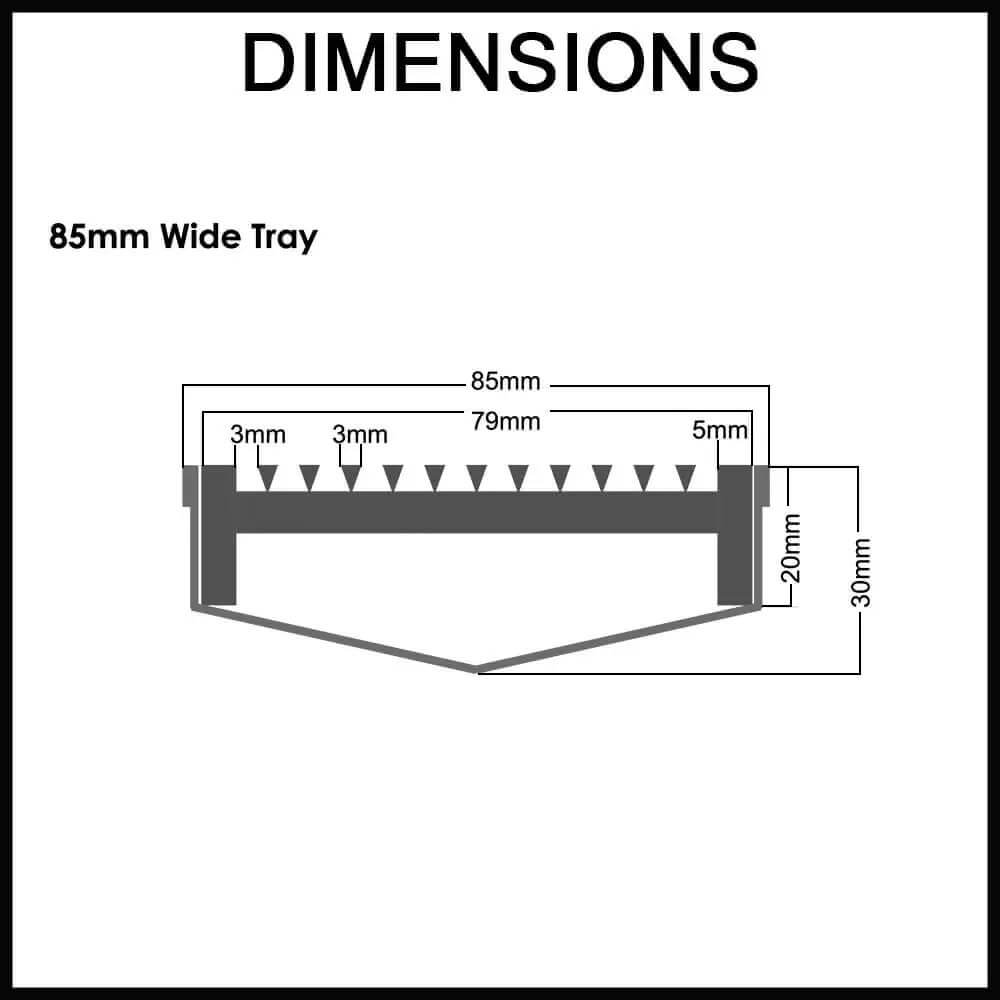

Wedge wires 3mm wide with 3mm gaps and 5mm x 20mm heavy duty supports
Wedge wire support bars every 25mm for superior strength and heavy duty load support
No plastic components
Note: Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order
Manufactured in Australia
Finish: Brass

Lifetime Warranty

Lifetime guarantee against manufacturing defects

Click on the icon below to download the PDF manual for this product

Typical Installation Steps

Construct landscape surround in accordance with structural requirements leaving a penetration for drainage.
Add a suitable drainage flange and fasten/bond in place and cap during the building phase. DrainTEK recommends using a suitable puddle flange with an internal diameter large enough for the outdoor grate outlet to fit loosely within.
Complete water-proofing in accordance with AS3740 with waterproofing turned down into the plumbed drain.
Note: Do not integrate tray with the water-proofing as steel expands/contracts differently to other materials.
Adjust the height of adjustable puddle flange (if installed) to suit desired outdoor grate height If your tray outlet is not attached, then adhere with a waterproof adhesive sealant prior to installation and ensure it is secure.
Set tray at required height in mortar so the finished tiles will be just above the top edge of the grate tray.

Lifetime Warranty

All drainTEK linear channels and grates come with a Lifetime Guarantee against manufacturing defects. Conditions may apply - see Renovator Store Warranty Terms and drainTEK Warranty Protection Page.

(No reviews yet) Write a Review

$44.95

UPC:

Adding to cart… The item has been added

<p><span style="font-weight: 400;">DrainTEK manufactures these custom-made wedge wire linear grates to order in any length and lets you decide on the outlet's diameter and location. DrainTEK custom drains are made in Melbourne using 316L stainless steel and is Watermark certified. This custom wedge wire outdoor linear grate offers the finest value for the money for a product of this caliber. This version has a brass finish which mimics gold and lets it stand out. T</span><span style="font-weight: 400;">he quoted price is made up of:</span></p> <p> </p> <ul> <li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">The base manufacturing charge of </span><strong>$44.95</strong></li> <li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">A charge of </span><strong>$0.35 </strong><span style="font-weight: 400;">for each mm of length (Select the width and then enter the length where prompted below)</span></li> </ul>

<h4><strong>Linear Wedge Wire Outdoor Grates in Brass finish</strong></h4> <p><span style="font-weight: 400;">DrainTEK manufactures custom wedge wire grates of any length upon request. You can choose the size and location of the outlet, making it the most flexible option for any renovation or new construction. The quality is superior to most outdoor grate products on the market and you will not find a better priced custom made linear drain at this quality level. You can also choose this brass finish that has a gloss reminiscent of gold and will work with both lavish and simple designs.</span></p> <p>If you require a corner piece (for an L shape configuration), please add your corner piece <a href="/indoor-corner-piece-shower-grate.html" target="_blank" rel="noopener">here</a>.</p>

<h4><strong>Sleek Wedge Wire Ideal for All Outdoor Space</strong>s</h4> <p>The 85mm low profile linear grate is an architecturally designed water drainage solution for:</p> <ul> <li>Landscaping</li> <li>Decks and balconies</li> <li>Patios</li> <li>Courtyards</li> <li>Verandas</li> <li>Paved surrounds</li> <li>Pool and spa areas</li> <li>Wet outdoor areas</li> </ul> <h4>Highest Quality Linear Drains For Landscaping</h4> <ul> <li>Full 316L (low carbon) marine grade stainless steel</li> <li>The tray is 1.2mm thick for superior strength</li> <li>V profile drain tray for efficient water drainage</li> <li>Fully welded high load bearing wedge wire insert (3mm wedge wires and 3mm gaps)</li> <li>Manufactured in Australia to any length with specified outlet position and size</li> <li>Its brass finish will go well with a range of materials and color schemes</li> </ul> <p> </p> <p><img src="{{media /content/outdoor/drains/draintek/how-to-order-custom-draintek-shower-grates-1908.png"}}" alt="how-to-order-custom-draintek-shower-grates-1908" /></p>

<h4>Highest Specifications</h4> <p><strong>Tray</strong></p> <ul> <li>Full 316L (low carbon) stainless steel tray and outlet (1.2mm thick) in any length</li> <li>V profile with 30mm depth for efficient drainage</li> <li>Choice of 40mm or 50mm diameter outlet at any position</li> <li>Custom length trays are completed with modular end-caps and outlets that are affixed using advanced chemical water-proof elastic adhesive bonding to ensure a lasting water-tight seal</li> <li>Note: Tray lengths are typically available in up to 3000mm. Total drains ordered in excess of this will be supplied in multiple tray pieces which are easily joined with supplied joiner plates using a quality waterproof adhesive silicone (eg. Sikaflex)</li> <li>Manufactured in Australia</li> <li>Finish: Brass</li> </ul> <p> </p> <p><strong>Wedge Wire Insert </strong></p> <ul> <li>Wedge wires 3mm wide with 3mm gaps and 5mm x 20mm heavy duty supports</li> <li>Wedge wire support bars every 25mm for superior strength and heavy duty load support</li> <li>No plastic components</li> <li>Note: Inserts longer than 1500mm can often be too heavy to handle safely. Therefore lengths longer than this will typically be supplied in multiple equal lengths which will butt together for a seamless look. Contact us if you have a preference for longer inserts in your order</li> <li>Manufactured in Australia</li> <li>Finish: Brass</li> </ul> <p> </p> <p><strong>Lifetime Warranty</strong></p> <ul> <li>Lifetime guarantee against manufacturing defects</li> </ul>

<h4><strong>Click on the icon below to download the PDF manual for this product</strong></h4> <p><a href="{{media /content/outdoor/drains/draintek/draintek-indoor-shower-grate-installation.pdf"}}" target="_blank" rel="noopener"><img src="{{media /content/outdoor/drains/draintek/draintek-indoor-shower-grates-manual-icon.jpg"}}" alt="" /> <br /></a></p> <h4><strong>Typical Installation Steps</strong></h4> <ol> <li>Construct landscape surround in accordance with structural requirements leaving a penetration for drainage.</li> <li>Add a suitable drainage flange and fasten/bond in place and cap during the building phase. DrainTEK recommends using a suitable puddle flange with an internal diameter large enough for the outdoor grate outlet to fit loosely within.</li> <li>Complete water-proofing in accordance with AS3740 with waterproofing turned down into the plumbed drain.<br /><strong>Note:</strong> Do not integrate tray with the water-proofing as steel expands/contracts differently to other materials.</li> <li>Adjust the height of adjustable puddle flange (if installed) to suit desired outdoor grate height If your tray outlet is not attached, then adhere with a waterproof adhesive sealant prior to installation and ensure it is secure.</li> <li>Set tray at required height in mortar so the finished tiles will be just above the top edge of the grate tray.</li> </ol>
